Cod: RH80E05X T-REX 800E F3C Super Combo

  • More Details
Dati Tecnici - Technical Data

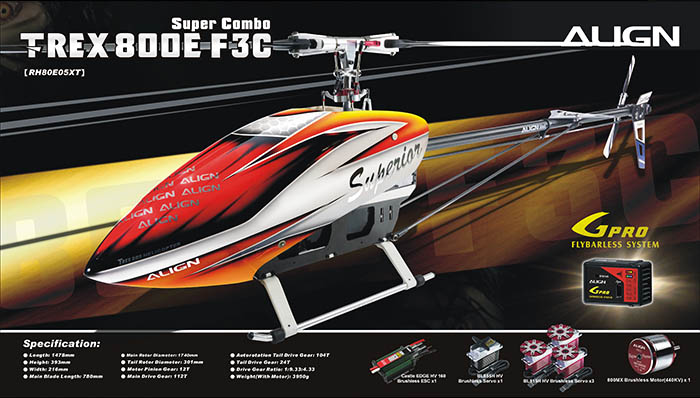

RH80E05X - T-REX 800E F3C Super Combo

1 / 9


T-REX 800E F3C is uniquely design for F3C competition, standard 800 class model with brand new FL Flybarless Rotor Head System and new generation Gpro Flybarless System also can compatible with new T-REX 800E F3C fuselage. The incredibly high end flagship T-REX 800E F3C model is now brought into being.

T-REX 800E F3C equipped with brand new FL Flybarless Rotor Head System utilizes extreme low CG design, effectively reduces resistance during flying maneuvers, increased flight responsiveness and precision. In addition, the styling appearance harmony with red anodized and stainless color, bring out the high quality of helicopter. With standard equipment 800MX 440KV motor features superior power, excellent torque. The latest BL815H and BL855H metallic brushless servos are standard equipment, featuring superior torque, speed with unparalleled efficiency and precision. These servos are highly appraised by team pilots for their low operation heat, contributing to dramatically increased longevity.

Equipped with Align’s new generation GPro flybarless system, featuring CPU capable of 20 times faster processing power, along with brand new firmware, and performance improving compensation routines; Allowing Gpro to provide faster and more precise response, reaching the pinnacle of helicopter performance. GPro features ergonomically adjustability through PC, as well as iOS and Android smartphone apps.

Align flagship helicopter model incorporates all the top grade upgrades, superior control feel, and attractive look, the T-Rex 800E F3C is the best choice for any enthusiasts!

Equipped with Align’s new generation GPro flybarless system, featuring CPU capable of 20 times faster processing power, along with brand new firmware, and performance improving compensation routines; Allowing Gpro to provide faster and more precise response, reaching the pinnacle of helicopter performance. GPro features ergonomically adjustability through PC, as well as iOS and Android smartphone apps.

800MX features high efficiency, superior power, excellent torque, low current draw and low temperature,it's capable of maintaining consistent torque and head speed through continuous F3C maneuvers.

The FL Flybarless Rotor Head System utilizes extreme low CG design, effectively reduces resistance during 3D maneuvers, increased flight responsiveness and precision. In addition, the styling appearance harmony with red anodized and stainless color, bring out the high quality of helicopter.

Utilizes highest spec CNC Modue-1 helical main gear. The latest BL815H and BL855H metallic brushless servos are standard equipment, featuring superior torque, speed with unparalleled efficiency and precision. These servos are highly appraised by team pilots for their low operation heat, contributing to dramatically increased longevity.

Innovative sliding battery tray rails imbedded into 3K side frame, providing easy battery access and protection. New carbon tail control pushrod assembly.

High quality new tail gearbox design, combined with new dual point mounted tail pitch control assembly to minimize slops and increase rudder control precision.

Utilizes newly developed, highest spec and superior anti-wear material to increase the overall strength and durability for torque tube drive gear. Effectively minimize gear striping and crash damage.

Standard equipment
● Castle EDGE HV 160 Brushless ESC x 1
● 800MX Brushless Motor(440KV) x 1
● BL855H High Voltage Brushless Servo x 1
● BL815H High Voltage Brushless Servo x 3
● Gpro Flybarless system x 1

Specification
● Length: 1478mm
● Height: 393mm
● Width: 216mm
● Main Blade Length: 780mm
● Main Rotor Diameter: 1740mm
● Tail Rotor Diameter: 301mm
● Motor Drive Gear:12T
● Main Drive Gear:112T
● Autorotation Tail Drive Gear: 104T
● Tail Drive Gear: 24T
● Drive Gear Ratio: 1:9.33:4.33
● Weight(With Motor): 3950g



Accessories
●T-REX 800E F3C Kits Set x 1
●Gpro Flybarless system x 1 set
●780 Carbon Fiber Blades x 1 set
●115mm 3K Carbon Fiber Tail Blades x 1 set
●BL815H High Voltage Brushless Servo x 3
●BL855H High Voltage Brushless Servo x 1
●3K Carbon Fiber Tail Boom x 1
●800MX Brushless Motor(440KV) x 1
●Castle EDGE HV 160 Brushless ESC x 1



Radio transmitter and electronic equipment required for assembly:
●Transmitter(7-channel or more, helicopter system)
●Receiver(7-channel or more)
●6S Li-Po 4500 ~ 5200mAh x 2
●2S Li-Po 1900 ~ 2300mAh x 1


Gpro Programmable Flybarless System




ALIGN new multifunctional Gpro flybarless system with active CPU, processing 20 times faster than previous generation. The freshly new software structure improves system compensation, bring GPro up with precise and agile response, and also keep up-to-date flying performance than ever.The most important is that utilizes with latest iOS and Android APP can be easily and directly adjusted through mobile phone while at the field. New human oriented interface allows convenient and rapid setup and installation.


●Brand new CPU, processing 20 times faster than previous generation, bring GPro up with precise and agile response.
●Freshly new software process structure improves system compensation and keep up-to-date flying performance.
●Utilizes with latest iOS and Android APP that GPro can be easily and directly adjusted through mobile phone while flying outdoors.
●New human oriented interface allows convenient and rapid setup and installation.
●Superior flying characteristic remain the same flying control among T-REX 250~800 helicopters.
●Full support receivers and satellites currently on the market, including S.BUS/X.BUS and DSM2/DSMX/DSMJ/DMSS.


Gpro Programmable Flybarless System
●Operating voltage range:DC 3.5V~8.4V
●Operating current consumption:<100mA @4.8V
●X and Y axis Operating Angle Range:-300~+300 degree
●Z axis Operating Angle Range:-600~+600 degree
●Sensor resolution:12bit
●Supports 90/120/135/140 CCPM swashplates
●Spektrum and JR Satellite antennas support (Replaces original factory receiver)
●Futaba S.BUS/JR X.BUS system support
●Rudder support 760μ narrow band servos
●Supports multi-blade rotor heads

●Engine speed governor range:10500-21000 RPM
●Operating Temperature:-20~65 degree
●Operating Humidity:0%~95%
●Size:36.5x25.2x15.6 mm
●Weight:11.5g
●RoHs cerification stamp
